Disposable Medical Endoscope - Ultra-Thin OV6946 Camera Module with Flexible Teflon Cable

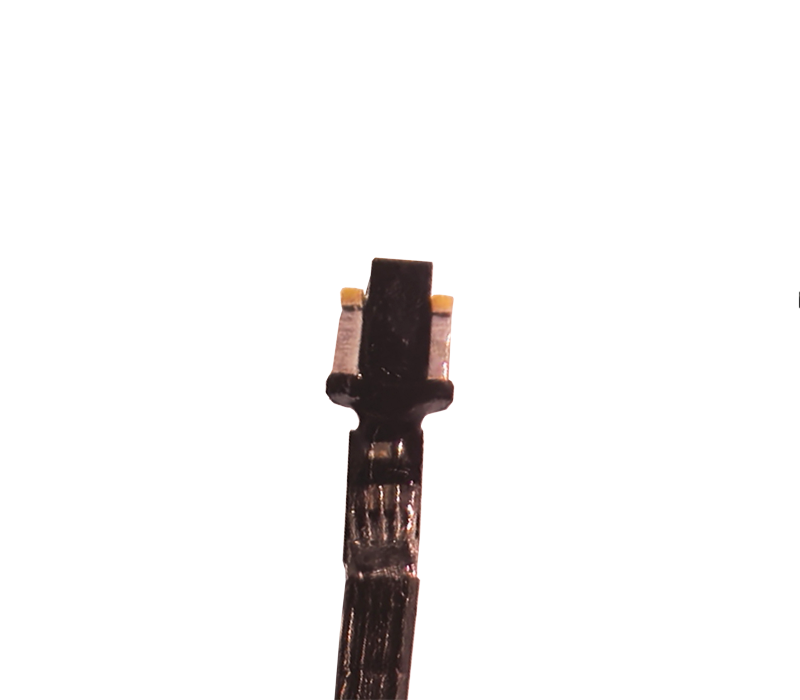

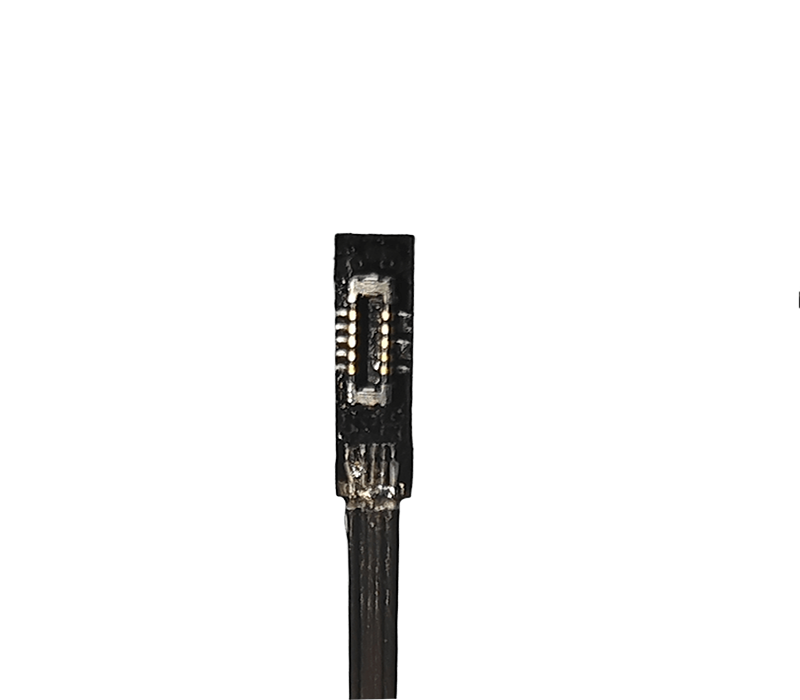

This module features an innovative quad coaxial, side-by-side structure. The rear panel interface matches the cable width, enabling direct soldering to header pins on the relay board or immediate tubing assembly—eliminating the need for secondary soldering. The lens module end integrates an LED within a compact 1.0x1.35mm footprint. This design supports fully automated pre-processing and welding, minimizing reliance on manual handling. The result is exceptional product consistency, higher yield rates, and the ability to meet cost-reduction targets for volume procurement.

Send Your Inquiry Download

Description

The Endoscopic Camera Module features a compact, high-resolution CMOS sensor and optical lens assembly, delivering sharp images during procedures. Suitable for ENT endoscopy and flexible endoscopic systems, it provides reliable performance for both clinical and research applications.

This Miniature Camera Module is engineered for tight-space inspections and endoscopic applications. With superior depth of field and flexible insertion capabilities, it is ideal for gastrointestinal endoscopy, bronchoscopy, and portable endoscopic systems.

Product Model	OV6946
Imaging sensor	0V6946，1/18”CM0S
Module effective pixels	400(H)*400(V)
SNR	>45dB
Field angle	120°±15%
Depth of field range	3-100mm
Optimal working distance	7mm

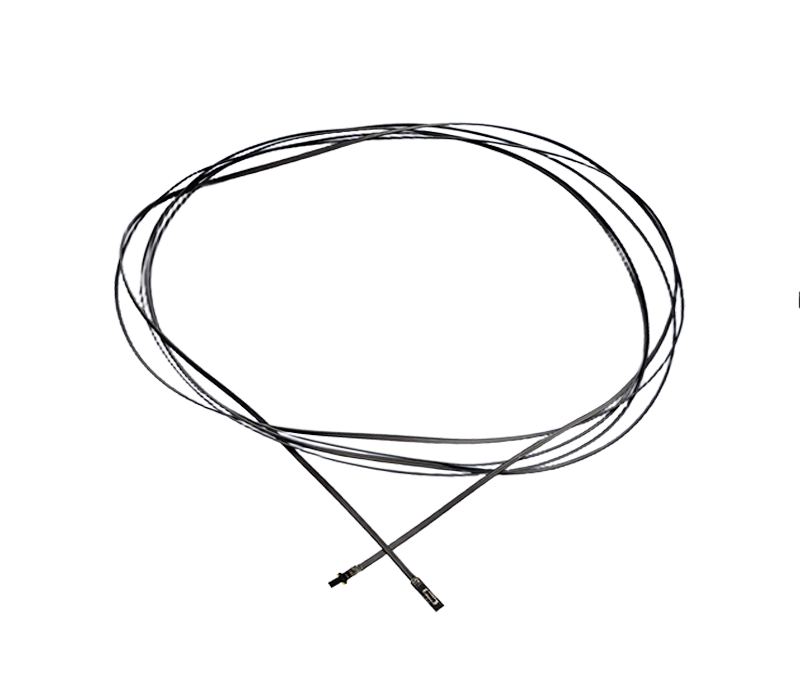

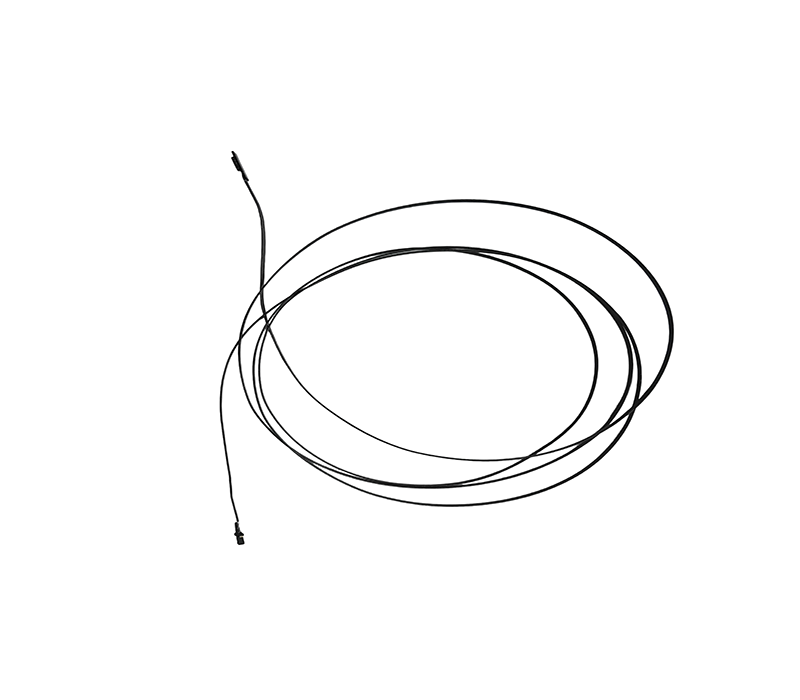

Cable Dimension	0.37mmx1.37mm
Lens assembly dimensions	1.0mmx1.35mm
Application	used for disposable electronic endoscopes such as ureteroscopes, bronchoscopes, hepatobiliary endoscopes, and nephroscopes. It has 160,000 pixels, a single-row coaxial structure, and double-layer Teflon insulation.
